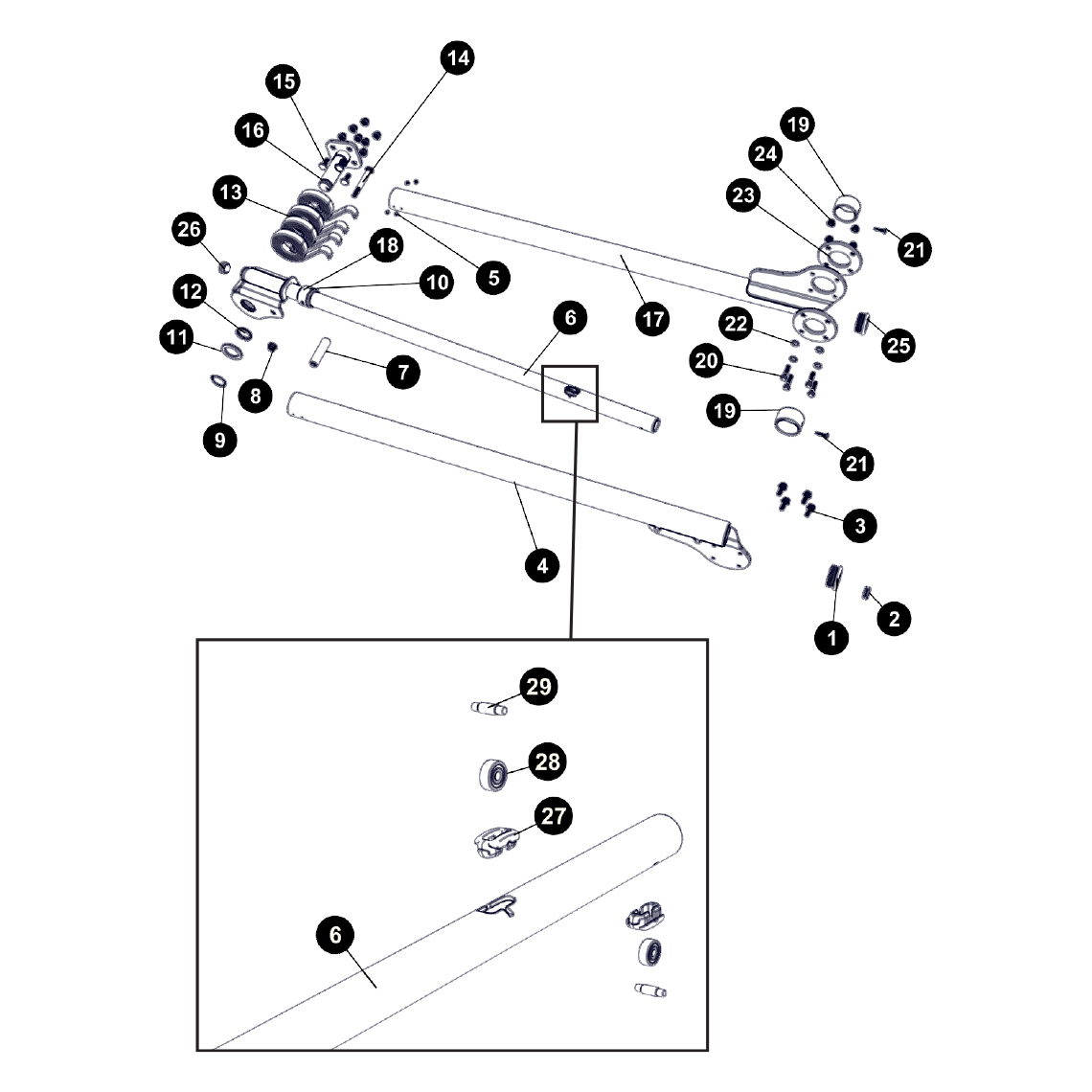

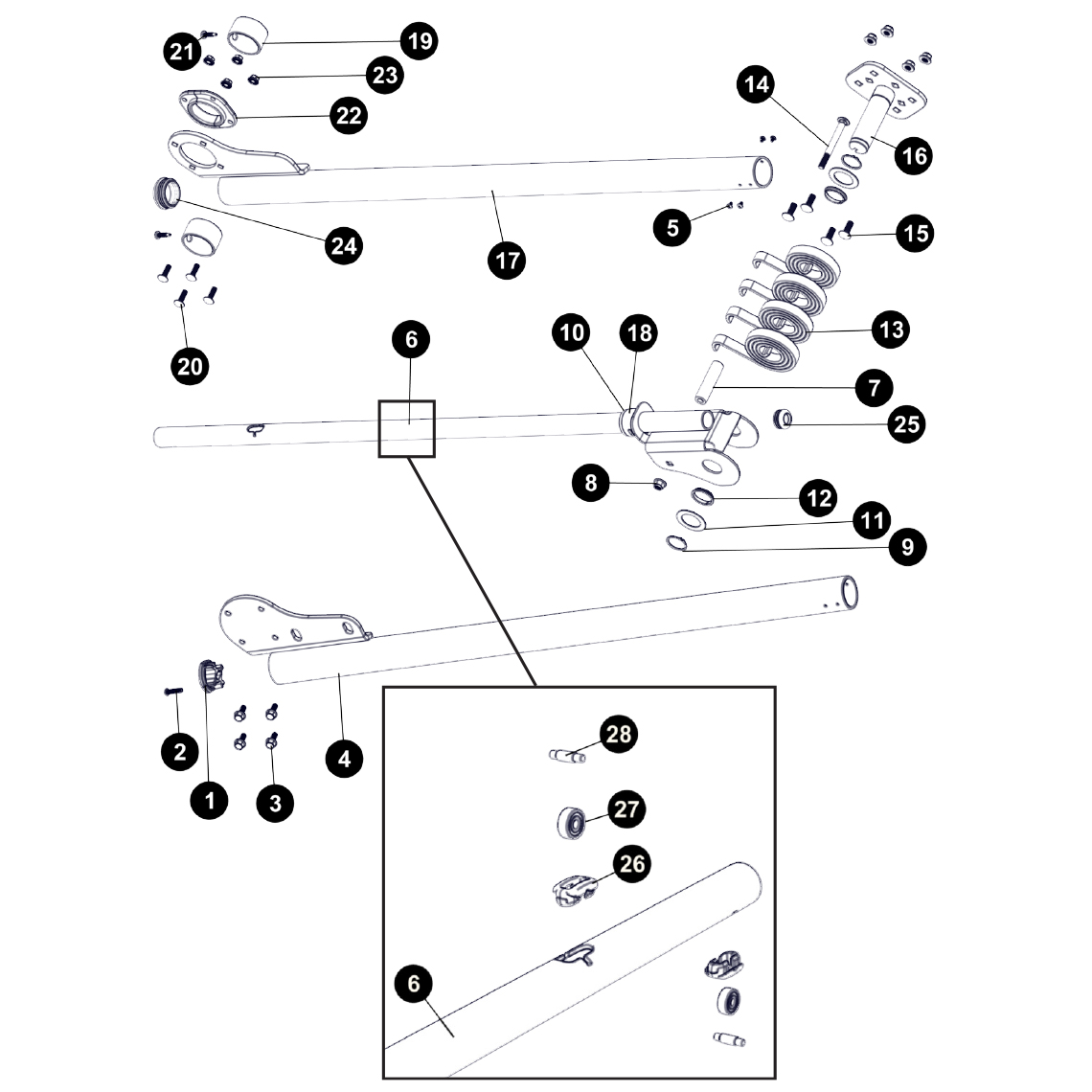

ROLTEC Pivot Arm

• Install Videos
• View Instructions

Part Numbers marked with cannot ship to Canada.

Item	Part No.	Description	Price	Qty
	90423	Front Pivot Arm & Mount Kit w/ Motor (2" or 3" roll tube) (14' of wire)	$1,216.00
	4005651	Front Pivot Arm & Mount Kit w/ Motor (2" or 3" roll tube) (19' of wire)	$1,249.50
	4003758	Rear Pivot Arm & Mount Kit (3" roll tube)	$494.00
	90425	Rear Pivot Arm & Mount Kit (2" roll tube)	$495.50
	70615	12V Motor, Worm Gear & Gearbox w/ Cover	$626.50
	60583	5/16" x 3/4" Zinc Plated Serrated Flange Hex Bolt w/ Vibratite	$1.50
	90395	6 Ga. Motor Wiring Kit (14' of wire & connectors)	$109.00
	4005649	6 Ga. Motor Wiring Kit (19' of wire & connectors)	$144.00
	70693	Pivot Mount, Mounting Plate & Slant Bracket Kit (ROLTEC)	$136.50
	4003786	Rear Pivot Arm Kit (3" roll tube)	$326.00
	90409	Rear Pivot Arm Kit (2" roll tube)	$321.00
	90407	Front Pivot Arm Kit (2" & 3" roll tube)	$323.50
	4003789	Rear Pivot Arm (3" roll tube)	$232.50
	90433	Rear Pivot Arm (2" roll tube)	$229.50
	90449	Front Pivot Arm (2" or 3" roll tube)	$232.00
	90447	Front Upper Pivot Arm (systems manufactured after 10/14)	$48.00
	90428	2" Grommet Plug	$4.50
	40664	7/16" Inner Dia. Rubber Grommet	$1.50
	4003788	Rear Upper Pivot Arm (3" roll tube)	$51.00
	90419	Rear Upper Pivot Arm (2" roll tube)	$46.00
	70549	2" Nylon Plug	$1.50
	70996	#10 x 1/4" Zinc Plated Phillips Screw Type F w/ Vibratite	$1.50
	90394	Lower Pivot Arm (systems manufactured after 10/14)	$178.50
	90479	Lower Pivot Arm Washer	$2.00
	70971	Clip-In Wear Bushing	$8.50
	90410	Lower Pivot Arm Wear Collar	$2.50
	70667	1-1/4" Grommet Plug	$4.00
	90313	Bearing Clip	$1.50
	90375	3/4" x 1/4" Bearing	$9.50
	90378	Bearing Shaft	$2.50
	80113	Spacer Bushing	$5.50
	70401	3/8" Zinc Plated Nylock Flange Hex Nut	$1.50
	70696	1-1/4" Retaining Ring	$1.50
	70724	Pivot Mount Washer (stainless steel)	$1.50
	70626	Spiral Torsion Spring	$12.00
	70594	3/8" x 3-3/4" Zinc Plated Carriage Bolt	$1.50
	60254	3/8" x 1" Zinc Plated Carriage Bolt	$1.50
	4002305	Pivot Mount Plate & Shaft	$23.50
	4003783	Tube Wear Bearing w/ Retaining Collars Kit (3" roll tube)	$34.50
	70655	Tube Wear Bearing w/ Retaining Collars Kit (2" roll tube)	$42.00
	4003784	Retaining Collar (3" roll tube)	$5.00
	70618	Retaining Collar (2" roll tube)	$3.00
	60076	5/16" x 1-1/4" Zinc Plated Hex Bolt	$1.50
	10914	1/4" x 1" Zinc Plated Self-drilling Phillips Screw	$1.50
	90418	5/16" Zinc Plated Flat Washer	$1.50
	4003782	Tube Wear Bearing (3" alum. roll tube)	$11.00
	70624	Tube Wear Bearing (2" roll tube)	$16.00
	60194	5/16" Zinc Plated Serrated Flange Hex Nut	$1.50
