| Item |
Part No. |
Description |
Price |
Qty |
|
|
|
ROCKSTAR Frame, with decals (no hardware). Please have serial number available (located on back side of frame) to order correct replacement.
|
|
Call to Order |
|
|
80814
|
Protective Disc Tape, 2" Dia. (not shown)
|
$2.50
|
|
|
|
80351
|
Black Vinyl Cap
|
$1.50
|
|
|
|
90242
|
Adhesive Rubber Pad (not shown, for under support flange)
|
$9.00
|
|
|
|
|
Gusset and Hardware
|
|
|
|
|
90000
|
Gusset, Aluminum
|
$28.00
|
|
|
|
90196
|
Bolt, Carriage 3/8" x 1" Stainless Steel
|
$1.50
|
|
|
|
10929
|
Lock Washer, 3/8" Stainless Steel
|
$1.50
|
|
|
|
10928
|
Nut, Hex 3/8"-16 Gr 2, Stainless Steel
|
$1.50
|
|
|
|
90412
|
Clamp Assembly
|
$17.50
|
|
|
|
80367
|
Bolt, Carriage 3/8" X 1-1/4" Stainless Steel
|
$1.50
|
|
|
|
70535
|
Bolt, Carriage 3/8" x 5-1/2" Stainless Steel full thread
|
$2.00
|
|
|
|
80335
|
Frame Mount Clamp
|
$4.00
|
|
|
|
10928
|
Nut, Hex 3/8"-16 Gr 2, Stainless Steel
|
$1.50
|
|
|
|
10929
|
Lock Washer, 3/8" Stainless Steel
|
$1.50
|
|
|
|
10930
|
Flat Washer, 3/8" x 7/8" Stainless Steel
|
$1.50
|
|
|
|
80834
|
Stabilizer Bracket Assembly (for Universal Models Only)
|
$5.00
|
|
|
|
80367
|
Bolt, Carriage 3/8" X 1-1/4" Stainless Steel
|
$1.50
|
|
|
|
80351
|
Black Vinyl Cap
|
$1.50
|
|
|
|
10928
|
Nut, Hex 3/8"-16 Gr 2, Stainless Steel
|
$1.50
|
|
|
|
10929
|
Lock Washer, 3/8" Stainless Steel
|
$1.50
|
|
|
|
10930
|
Flat Washer, 3/8" x 7/8" Stainless Steel
|
$1.50
|
|
|
|
|

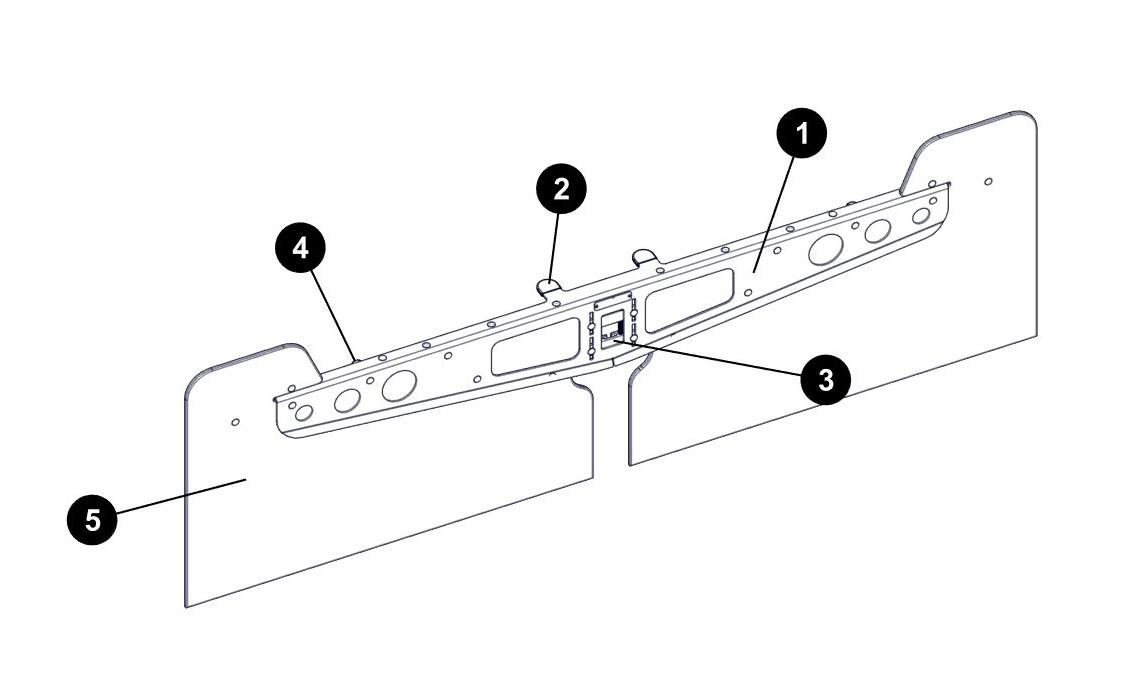

Mudflaps and Hardware
|
|
|
|
|
90534
|
Mud Flap 3XL, rubber (1 flap, no hardware) may require trim cutting to match existing flap
|
$110.00
|
|
|
|
80367
|
Bolt, Carriage 3/8" x 1-1/4" Stainless Steel
|
$1.50
|
|
|
|
10928
|
Nut, Hex 3/8"-16 Gr 2, Stainless Steel
|
$1.50
|
|
|
|
10929
|
Lock Washer, 3/8" SST
|
$1.50
|
|
|
|
10930
|
Flat Washer, 3/8" x 7/8" Stainless Steel
|
$1.50
|
|
|
|
90218
|
Flat Washer, 3/8" x 1-1/4" Stainless Steel
|
$1.50
|
|
|
|
80802
|
Bolt, Carriage 3/8" x 1-1/2" Stainless Steel
|
$1.50
|
|
|
|
90465
|
Middle Bracket, Right Hand Side
|
$10.00
|
|
|
|
90467
|
Middle Bracket, Left Hand Side
|
$10.00
|
|
|
|
90471
|
Outer Bracket, ROCKSTAR 3XL
|
$15.00
|
|
